Protect yourself from hardware failure within your own system or increase performance with ease with the RAIDON SR2760-2S-S2 internal SATA RAID module. The pinnacle of design and performance, SR2760-2S-S2 internal RAID module completes any computer. The SR2760-2S-S2 allows you to install two 2.5” hard drives in the same space as a single 3.5” hard drive or floppy drive with RAID0 (Striping) or RAID1 (Mirroring).

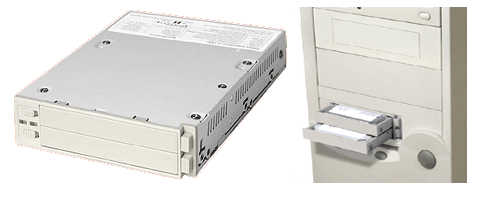

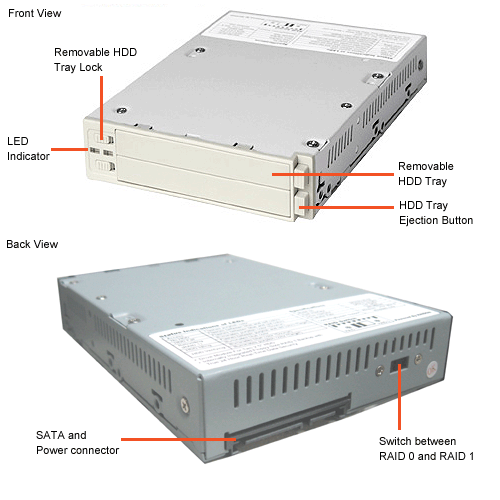

The SR2760 houses two 2.5” SATAII 3.0ghz drives neatly in 3.5” drive bay sized module and can be mounted in a floppy drive bay or a 3.5” hard drive bay. The unit is easily installed and connects via a single SATA cable to your system motherboard just like a single 3.5” hard disk drive. This small and sleek design utilizes key-less locks; no more lost keys! Helpful colored LEDs provide useful drive status feedback with different colors. With these LEDs you can easily see what state your drives are in.

Perfect for Windows users, the SR2760 includes a hardware RAID controller for RAID0 (Striping) or RAID1 (Mirroring) applications. In RAID0 setting, users will realize increased data transfer speeds from a typical 3.5” hard drive. In RAID1 setting, the hardware redundancy can help prevent data loss from a hard drive failure.

Features

• Host Interface - SATA II 3.0 GHz
• Drive Interface - 2.5" SATA
• Capacity Support - Over to 2TB
• Transfer Rate - 300 MB/sec
• RAID Level(s) - Supports RAID0 and RAID1 (Switch on back)
• Hot Swap - Yes
• Power Supply - SATA 22 Pin
• Fan - SUNON 3cm Fan x 1
• LED Display - Yes
• Operating System Support - Windows, Linux, Mac & Windows Vista
• Dimension (mm) - 101.7W x 25.8D x 147L
• Weight (kg) - 0.8
• Certification(s) - CE/FCC
