GH-341ATX

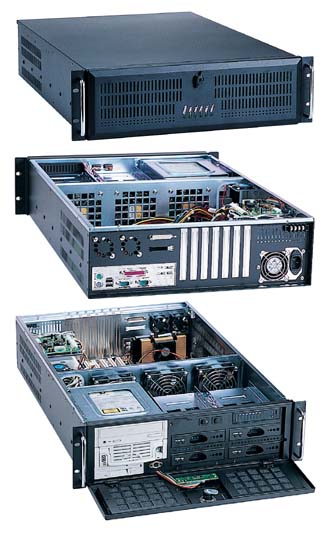

GH-341ATX Image
This image is representative of the product and may not be the exact image of this product.
Model: GH-341ATX
Manufacturer: Rackpaq
3u Rackmount chassis w/ 2 x 5.25", 2 x 3.5" FDD, 1 x 3.5" Hidden, 4 x Hot Swap SCA-2 SCSI HDD Trays. Dimensions: 483(W) x 133(H) x 650(D) mm (19" x 5.2" x 25.6").
Product Status: Active - Active products are produced on a regular manufacturing schedule and are actively supported products. Active products are not necessarily in stock in the USA. Lead time to ship date for Active products is typically stock to 15 business days ARO.

Stock Status: Call

Get Quote ->
The GH-341ATX has 4 hotswap, 2 x 5.25, and 1 x 3.5 drive bays. With 3 x 9cm (51 CFM) and 2 x 4cm (7.0 CFM) heavy duty ball bearing fans it is able to keep its thermal stability.

Features

    EIA RS-310C 19" Rackmount Standard

    Construction:
  • Heavy Duty Cold Rolled Electroplated Steel

    • Color:
  • Black, Beige, or Custom Design

    • System Boards:
  • Dual Xeon, Dual Opteron, Pentium 4, Dual Pentium III based boards

    • Motherboard Size:
  • Support ATX M/B (Max. to 12" x 13")

    • Drive Bays:
  • 2 x 5.25", 2 x 3.5" FDD, 1 x 3.5" Hidden, 4 x Hot Swap SCA-2 SCSI HDD Trays

    • Power Supply:
  • (Rear Chassis Installation) 2U Single or Redundant Power with 200mm-300mm Depth (Optional)

    • Cooling Units:
  • 4 x (90mm = 51CFM ea.), 2 x (40mm = 7CFM ea.) Heavy Duty Ball Bearing Fans

    • Filter:
  • 2 x Removeable Door Filters for Cleaning

    • Expansion Slot:
  • 7 x Veritcal Slots, SCAM Compliant Support SE, LVD, U2 & Ultra 160 System, Transfer Rate Up to 160MB/Sec

    • Indicators:
  • LEDs for Power, 2 x HDD, Fan, Temperature, & 3 x LAN Activity

    • Thermal Management Card:
  • Installed (GHA-CO01)

    • Buttons:
  • Power On/Off, System Reset, Buzzer Reset

    • Door(s):
  • 1 x Front Door with Thumb Lock

    • Dimensions:
  • 483(W) x 133(H) x 650(D) mm (19" x 5.2" x 25.6")

    • Weight:
  • 16kgs / 35.2lbs

    • Cu. ft.:
  • 5.3

    • Carton Size:
  • 818 x 594 x 309mm (32.2" x 23.4" x 12.2")

    • Product Applications:
  • Web Server, NAS, SAN, RAID Server, Media Broadcast Server, File Server


    • Optional Accessories:
    Additional HDD Bracket:
  • GHA-H431 (HDD Bracket used with 2U Single Power)

    • Slide Rails:
  • GHA-SL26
  • General Device RL-CC3001-00-0260
