This image is representative of the product and may not be the exact image of this product.
| Model: TEW-OA24D |
| Manufacturer: Trendnet | | Outdoor Directional Antenna (24dBi) |
| Product Status: Active - Active products are produced on a regular manufacturing schedule and are actively supported products. Active products are not necessarily in stock in the USA. Lead time to ship date for Active products is typically stock to 15 business days ARO. Stock Status: Call |
|
| Get Quote -> |
|
|
|

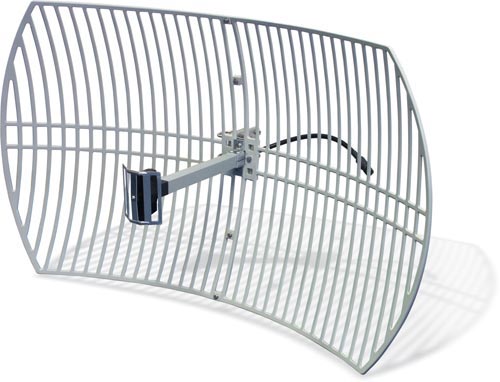

| TRENDnet's TEW-OA24D 24dBi High Gain Outdoor Reflector Grid Antenna provides extended coverage range for your existing 802.11b or 802.11g Wireless Local Area Network (WLAN). TEW-OA24D comes with female N-type antenna connector; with optional conversion cable (N-type to reverse SMA), you can connect the antenna to TRENDnet's TEW-303PI, TEW-310APBX, TEW-403PI, TEW-410APB, TEW-411BRP or any other 2.4 ~ 2.5GHz wireless device with male Reverse SMA connector. TEW-OA24D is weatherproofed; you can mount it outdoor on the wall or on a pole. The antenna also has a tilted bracket for antenna alignment. Expand the power of your wireless product with TRENDnet's TEW-OA24D.
Specifications:
- Frequency range: 2.4GHz ~ 2.483GHz
- Gain: 24 dBi
- VSWR: 1.5 : 1 Max
- Polarization: Linear, Vertical
- HPBW Vertical: 14°
- HPBW Horizontal: 10°
- Front to Back Ratio: > 30 dB
- Up/Down tilt: 60°
- Power Handling: Max. 100 W (cw)
- Impedance: 50 Ohms
- Connector Lead Cable: RG-58/u, 30
cm (12 inches)
- Connector Type: N-Type Female
- Survival Wind Speed: 216 Km/hr (134
Miles/hr)
- Temperature: -40 oC ~ 80 oC (-40
oF ~ 176 oF)
- Humidity: 100% @ 25 oC (77 oF)
- Lightning Protection: DC Ground
- Antenna Type: Directional, Grid type
- Mount Style: Pole end mounting. Pole
diameter 50mm (2 inches) max.
- Weight: 3.5 Kg (7.7 lb)
- Dimensions (WxHxD): (Final product)
100 x 60 x 50 mm(39.5 x 23.5 x 19.5 inches)
- Warranty: 3 Years
|
| More Info |
|
|
|
|
|
|
|
|
|
|
